Lagoon total nitrogen removal
NitrOx®+D
For the most stringent TN limits, the NitrOx®+D denitrification reactor concentrates denitrifying bacteria with a supplemental carbon feed and mixer to achieve ultra-low effluent TN.
NitrOx Reactor I · NitrOx Reactor II · NitrOx+D Reactor
Small footprint. Easy operation.
Select a component to zoom in and see what it does.
Three reactors, one compact footprint

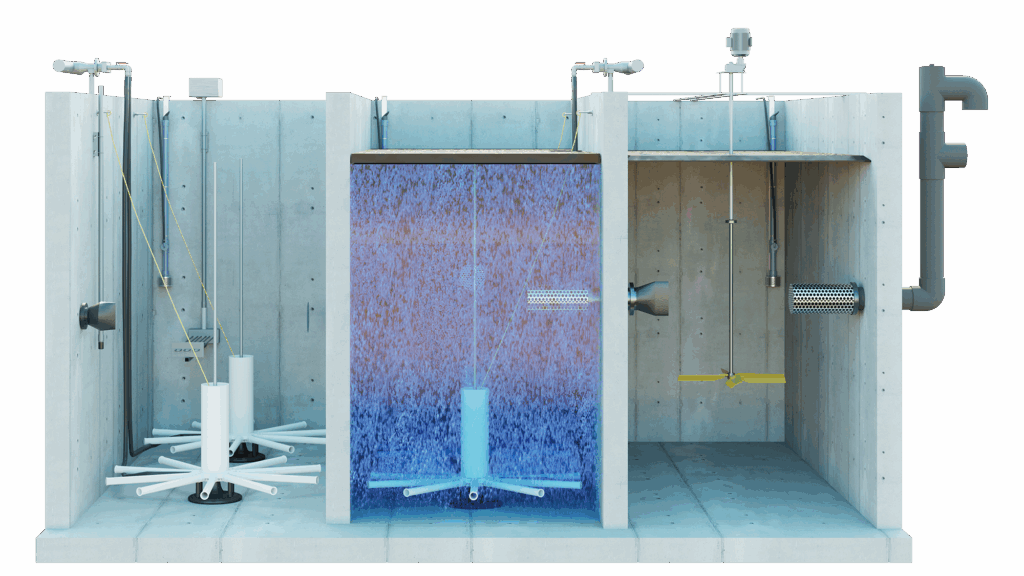

NitrOx Reactors I and II nitrify ammonia to nitrate. The NitrOx+D reactor then denitrifies nitrate to nitrogen gas. Select a component to see how.
01 / NitrOx Reactor I
Foam Control Sprayer
Sprays down surface foam so the reactors run clean, with no operator attention needed.
02 / NitrOx Reactor I
Ares Aeration®
Retrievable Ares aerators mix and oxygenate to fuel the nitrifying bacteria that convert ammonia to nitrate.
03 / NitrOx Reactor II
High Surface Area Media
NitroHive media concentrate nitrifiers, 10–20 times more than a typical MBBR, to finish nitrification before the +D reactor.
04 / NitrOx Reactor II
Floating Insulated Cover
Floats over the media zone to hold in heat for reliable treatment in cold weather.
05 / NitrOx+D Reactor
Media Retention Sieve
Keeps the media in the +D reactor, where denitrifying bacteria are concentrated, while treated water flows on to discharge.
06 / NitrOx+D Reactor
Tank Mixer
Mixes the +D reactor with a supplemental carbon feed, so denitrifying bacteria convert nitrate to nitrogen gas and reach ultra-low effluent TN.
NitrOx®+R lagoon recirculation
Lower cost. Easier operation.
When your permit requires TN reduction, NitrOx + Recirculation is the simple, cost-effective solution. Select a component to zoom in.
Recirculation, at a glance

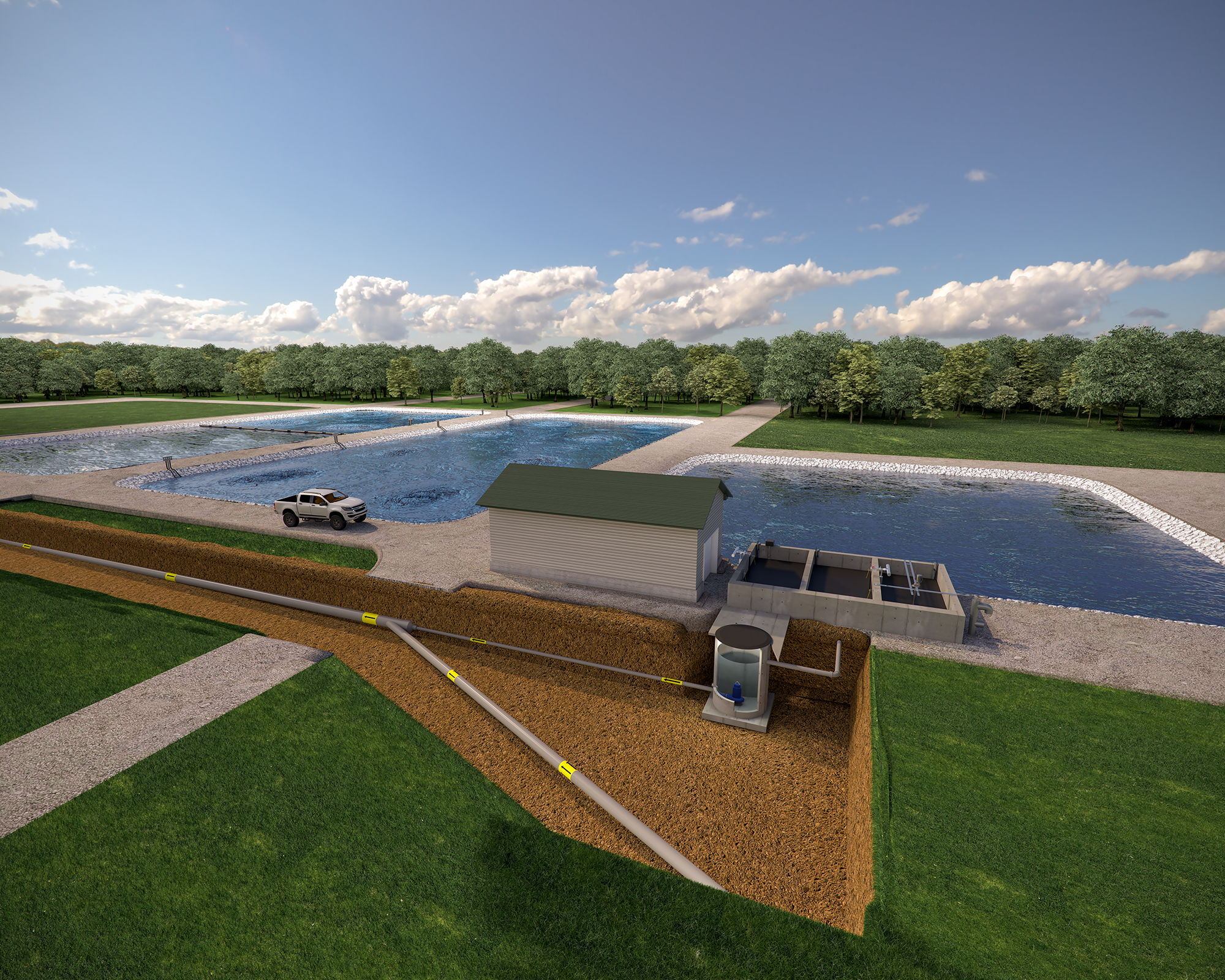

Nitrate-rich water is recirculated from the NitrOx Reactor to a small anoxic zone at the influent, where mixing encourages denitrifying bacteria to convert nitrate to nitrogen gas. Add NitrOx+D for the lowest TN.
01 / NitrOx+R
Anoxic Zone
A small anoxic zone at the influent, where mixing encourages denitrifying bacteria to convert recirculated nitrate to nitrogen gas.
02 / Existing lagoon
Aeration for BOD Removal
Aerated lagoon cells remove BOD before the water reaches the NitrOx Reactor.
03 / NitrOx+R
Recirculation Pump Station
Returns nitrate-rich water from the NitrOx Reactor to the anoxic zone at the front of the lagoon.
04 / NitrOx Reactor
NitrOx Ammonia Removal
Nitrifies ammonia to nitrate, to non-detect ammonia in any weather.
05 / Denitrification
Optional NitrOx+D
For the tightest TN limits, the +D reactor removes nitrate to very low levels: less than 10 mg/L TN, guaranteed.
Benefits of recirculation
- Process stabilization
- Improved nitrification
- Algae reduction
- Lower nitrate levels
- Increased alkalinity
How it works
Nitrify. Then denitrify.
NitrOx® reactors convert toxic ammonia to nitrate. For TN limits, denitrifying bacteria then convert nitrate to nitrogen gas, which is released harmlessly into the atmosphere.
With NitrOx®+R, nitrate-rich water is recirculated to a small anoxic zone at the lagoon influent. With NitrOx®+D, a dedicated denitrification reactor with a supplemental carbon feed and mixer takes TN to ultra-low levels.
- Low TNDedicated denitrification volume and controlled hydraulics remove nitrate to very low levels: less than 10 mg/L TN, guaranteed.
- Operationally simpleEngineered for ease. Consistent results with minimal time or effort.
- Measurable controlOptional ORP/NOx probes help operators target the sweet spot without overdosing carbon.
The NitrOx® playbook
Which limit are you solving?
Start with NitrOx® and add only what your permit requires. Triplepoint designs the process around your facility.
- Start with NitrOx® Ammonia to non-detect Add NitrOx for reliable nitrification in any weather.
- Add anoxic + recirculation NitrOx®+R Moderate TN limit of 15 mg/L Add a front anoxic zone and recirculation to the NitrOx Reactor.
- AddThis page NitrOx®+D Tight TN limit of 10 mg/L Add the +D denitrification reactor to achieve the lowest possible TN.
- Discharge
Ammonia + total nitrogen removal
Download the NitrOx® brochure.
See how NitrOx®, NitrOx®+R and NitrOx®+D help your lagoon meet low effluent limits for ammonia, nitrate and total nitrogen.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Proven performance. Guaranteed results.
Less than 10 mg/L TN, guaranteed.
We back every system with our Technology Performance Guarantee: if we say it will work, we make sure it does. From first design to final install, we stand behind our process, our products and our people.
NitrOx+D questions
Common questions.
Do we need NitrOx®+R or NitrOx®+D?
It depends on your TN limit. NitrOx®+R adds a front anoxic zone and recirculation for a moderate TN limit of 15 mg/L. NitrOx®+D adds a dedicated denitrification reactor for a tight TN limit of 10 mg/L. We'll design the process around your permit.
How low can NitrOx®+D take total nitrogen?
Less than 10 mg/L TN, guaranteed. Dedicated denitrification volume and controlled hydraulics remove nitrate to very low levels.
How is carbon dosing controlled?
Optional ORP/NOx probes help operators target the sweet spot without overdosing carbon.
Does NitrOx®+D also handle ammonia?
Yes. NitrOx Reactors I and II nitrify ammonia to nitrate, to non-detect ammonia effluent in any weather, before the +D reactor denitrifies. See NitrOx® →
